Medical equipment
certification number
222AGBZX00182A01

Uses a large colored vacuum fluorescent display (VFD) and synchronizes with button color to greatly improve usability.

Features

Use any of the four automatic courses or set options manually!
Three levels with frequencies of up to 90 Hz can be set.
With manual settings, you can choose from five levels between 1400 and 14000 V. Lie down and relax: the 1400 V setting allows up to eight continuous hours of therapy. Four different kinds of waveforms are automatically cycled through to prevent the body from adapting to the stimulation.

Local therapy

Choose from either 1400 or 2100 V.
As with full-body therapy, frequencies can be set at three different levels.

Four automatic courses and manual settings

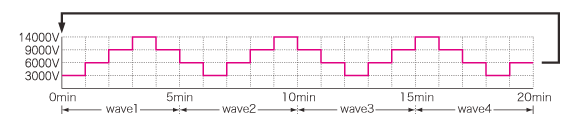

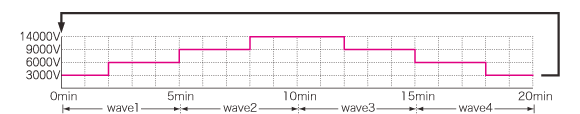

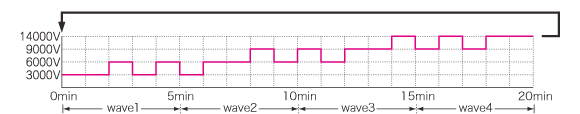

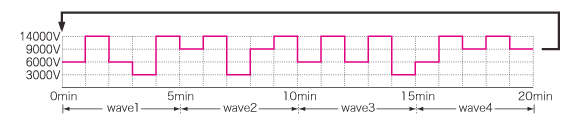

Automatic Course A

Automatic Course B

Automatic Course C

Automatic Course D

Manual Course

Voltage: 1400 / 3000 / 6000 / 9000 / 14000 V
Therapy length: 60 minutes
Therapy waveforms: automatically cycles through waveforms 1, 2, 3, and 4 every 5 minutes
Frequencies: 50 / 70 / 90 Hz

SE-14000 Specifications

-Rated voltage	AC220～240V
-Power usage	20W
-Rated frequency	50Hz
-Output voltage/th>	Full-body mode: 14000 / 9000 / 6000 / 3000 / 1400 V
	Local mode: 2100 / 1400 V
-Timer	Full-body mode: ～60 minutes
	Local mode: ～15 minutes
	Bedtime mode: settable from 15 minutes up to eight hours
-External dimensions	Height: 570, Width: 280, Depth: 260 (mm)
-Total weight	about 15Kg

Safety Precautions

・Please be sure to read the instruction manual before using. ・Do not use in conjunction with medical electronic equipment such as the below. -Pacemakers and other devices put inside the body -Heart-lung machines and other electronic life-support devices -Electrocardiograms and other such devices worn on the body ・Do not use in conjunction with any other medical devices ・Do not attempt to repair or modify this product.

※For product improvement purposes, specifications for this product are subject to change without notice.
We thank you for your understanding.
